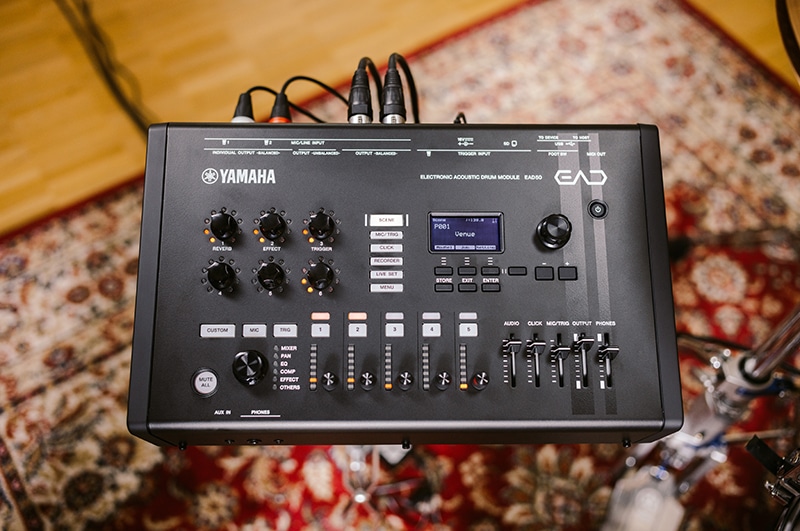

With the release of their new EAD50 Electronic Acoustic Drum Module, Yamaha has taken everything drummers loved about the original EAD concept and pushed it firmly into pro-level territory. Building on the award winning EAD10, the EAD50 isn’t just an update — it’s a serious expansion of what an acoustic drum module can do.
At its core, the EAD50 still does what made the original EAD10 such a hit: it captures your entire acoustic kit with clarity, enhances it with processing and effects, and makes recording or amplification simple. The difference this time is scale. Where the EAD10 was designed as a fast, all-in-one solution, the EAD50 is designed to sit at the centre of a modern hybrid drum setup.
In real-world terms, the EAD50 can replace a surprising amount of gear. It can act as a compact digital mixing desk for your drums, balancing microphones, trigger sounds, effects and playback in one place. It can function as a drum sample playback module thanks to its trigger inputs and internal sound library. It can handle backing tracks and looping, and it can take care of recording duties — all from a single unit mounted next to your kit. There’s no longer any need for an additional mixer or samplepad.
One of the biggest upgrades is connectivity. The EAD50 offers far more inputs and outputs, with multiple mic inputs (5x XLR/Jack combo inputs with phantom power), 8x balanced outputs and significantly expanded trigger support (you can connect up to 5 dual zone triggers or split to 10 mono triggers). This makes it just as comfortable on stage or in a studio as it is in a practice room. Add pads, triggers or electronic drums and the EAD50 quickly becomes a full drum sound engine rather than just an enhancement module.

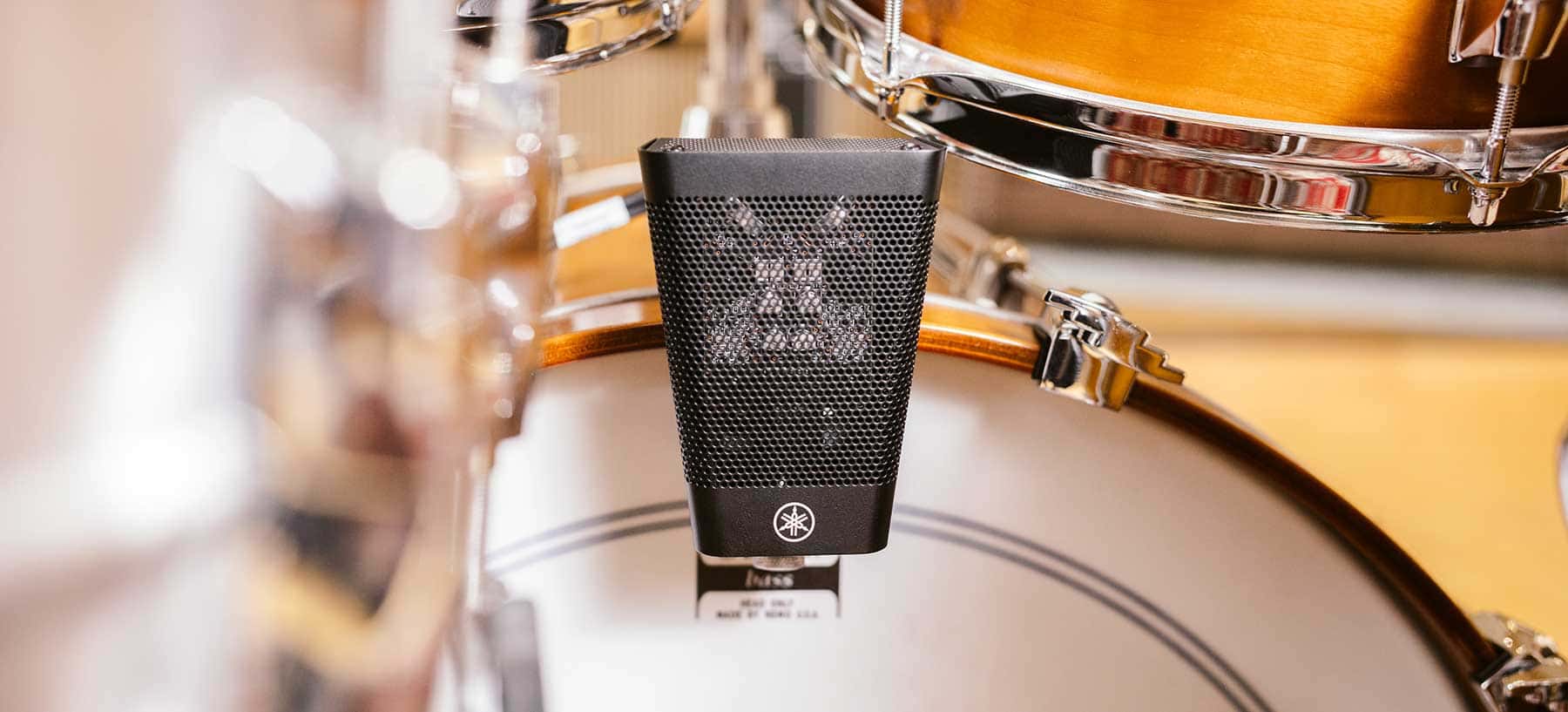

A key part of this system is the new DSU50 drum sensor, which represents a huge upgrade over the original EAD10 sensor. The DSU50 features a much improved matched pair of custom-designed, Yamaha-exclusive condenser microphone capsules for clearer stereo imaging and a more natural capture of the full kit. This alongside a refined kick trigger that delivers greater accuracy and consistency, the result is a more detailed, controlled and punchy drum sound straight out of the box.
Importantly, the DSU50 isn’t locked to the EAD50. It can also be used independently as a high-quality drum sensor with compatible hardware, making it a flexible option for drummers who want to upgrade their kit capture without committing to the full system straight away. It can also be mounted on a microphone stand away from the usual position mounted on the bass drum.
The end result is a module that feels less like an accessory and more like the brain of your drum setup. For drummers who loved the simplicity of the EAD10 but wanted more control, more inputs and fewer extra boxes to carry, the EAD50 delivers exactly that.
Can it do it all though? Well – just about! If you’re currently lugging about a whole set of mics, a digital mixing desk and a laptop or samplepad for backing track playback then the EAD50 can certainly handle all of that and more. We’ve heard it in action and it is a massive improvement in sound quality over the EAD10. You no longer have to sound like every other YouTube drummer out there! In short – the EAD50 simplifies your entire rig while opening the door to far more creative and professional possibilities.
Check out our EAD50 overview from Yamaha tech guru Simon Edgoose:

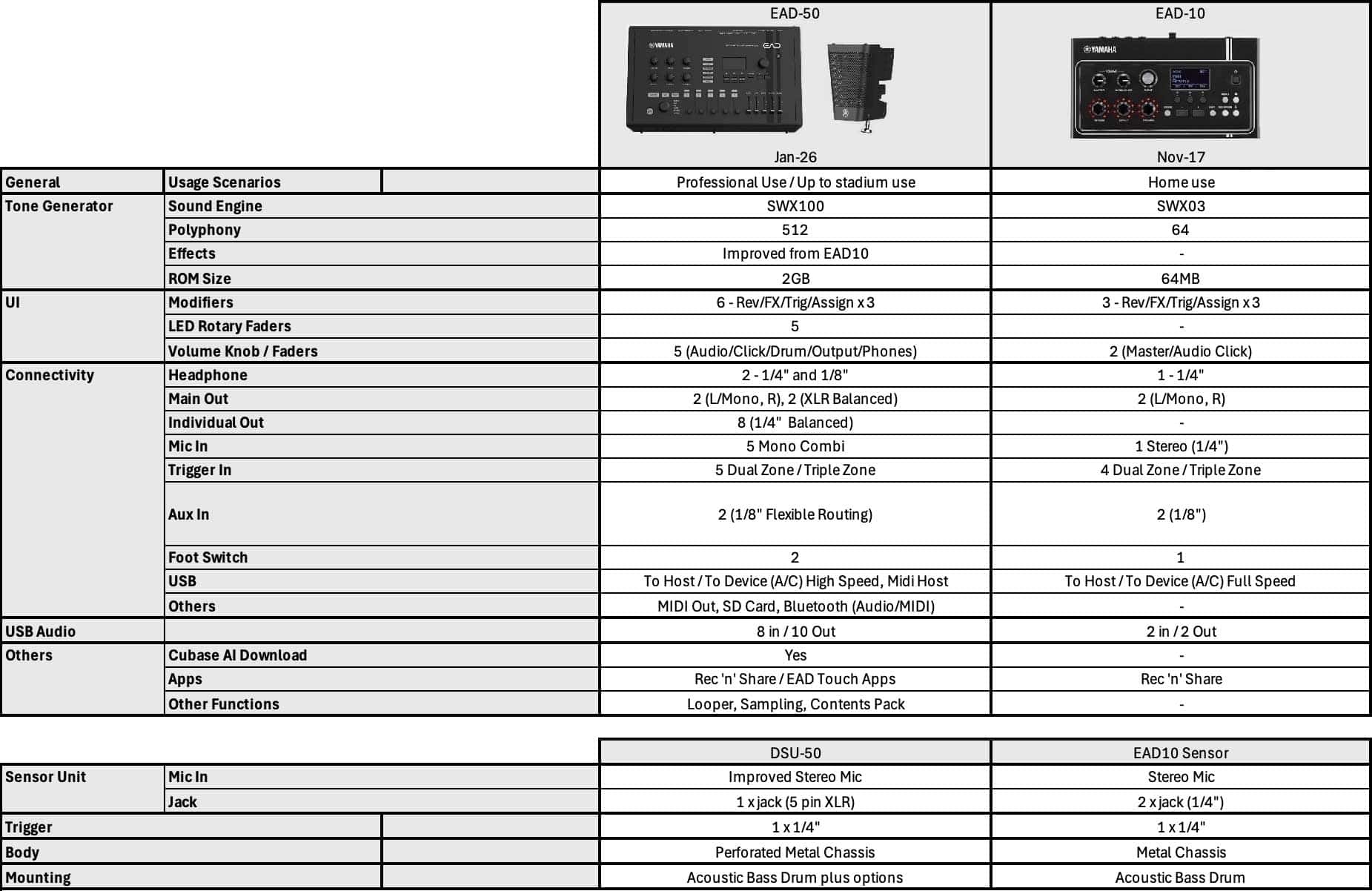

Here’s the comparison chart between the EAD50 and the EAD10
You can secure your EAD50 HERE with just a £99 deposit. First UK stock is expected to arrive late March.
